Name |
Units |
Parameters |
Note |
|
|
Maximum bending pipe diameter |
mm |
Φ88.9×4 Carbon steel |
|
|
|
Maximum bending radius |
mm |
300 |
Can be done according to the customer's requirements |
|
|
Minimum bending radius |
mm |
According to the pipe diameter |
||
|
Maximum feeding length |
mm |
3000 |
Can be done according to the customer's requirements |
|
|
Delivery method |
|
1.Direct delivery |
Optional |
|
|
Maximum bending angle |
Degree |
185 |
||
|
Use the controller |
|
PLC |
||
|
The number of elbows that each pipe fitting can accommodate |
个 |
20 |
Can be done according to the customer's requirements |
|
|
Work speed |
Bent pipe speed |
Deg/sec |
50 |
Adjustable |
|
Flow rate of the transfer pipe |
Deg/sec |
120 |
Adjustable |
|
|
Delivery speed |
Deg/mm |
500 |
Adjustable |
|
|
Precision |
Delivery accuracy |
mm |
±0.1 |
|
|
Pipe alignment accuracy |
Degree |
±0.1 |
||
|
Bending accuracy |
Degree |
±0.2 |
||
|

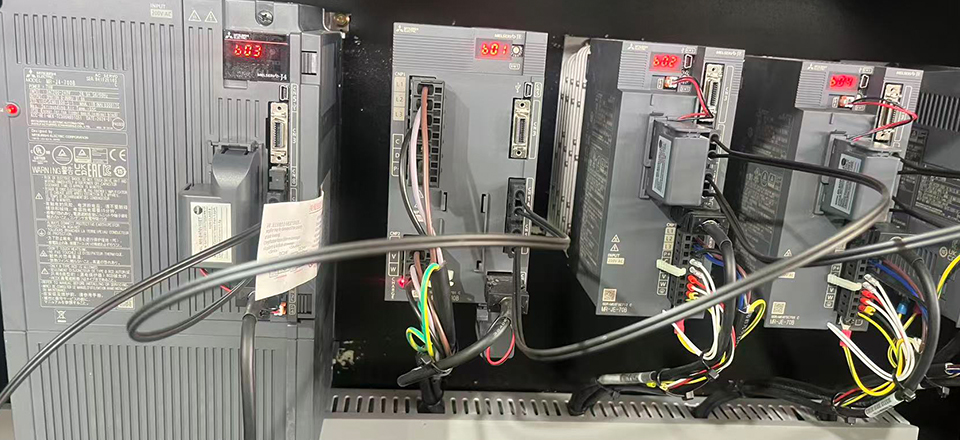

Delivery servo motor power |
W |
3000 |
||
|
Angle servo motor power |
W |
1500 |
||
|
Bent pipe servo motor power |
W |
Cylinder control |
||
|
Motor power |
Kw |
15 |
||
|
Maximum pressure |
MPa |
14 |
Adjustable |
|
|
Hydraulic system control |
|
Electromagnetic directional valve |
||
|
Fuel tank capacity |
L |
400 |
||
|
Machine weight |
Kg |
4100 |
||
|
Machine size |
cm |
5700*1300*1700 |
||
